5000 N (1124 lbs.)
Nitrous Oxide, Ethanol
2 Stage Parachute
12 km (7.5 miles)
480 m/s (1073 mph)
This is the second part of nitrous cold flow testing. In this test, we run nitrous oxide through our nitrous tower to verify our system, get pressure and temperature readings, and ensure a safe enviornment for testing with nitrous. Nitrous oxide is a rather dangerous chemical, so much safety regarding handling nitrous research needs to be completed in order to progress with our test.

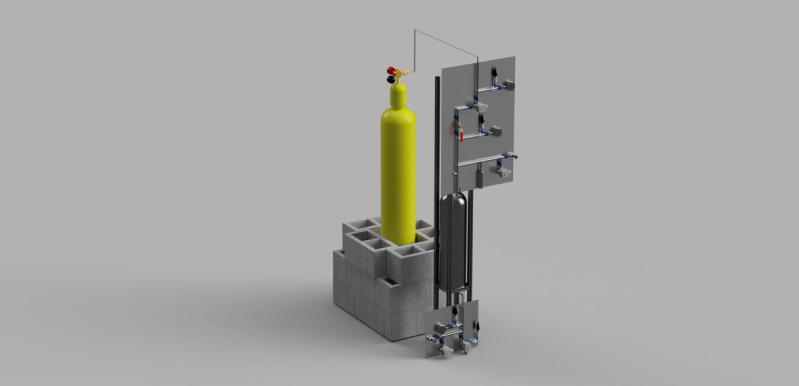

In this test, we will run water pressurized with nitrogen gas through our nitrogen tower, mirroring that of our preliminary ethanol cold flow test. Our oxidizer, nitrous oxide, is self-pressurizing. This means that in a certain temperature range, liquid nitrous oxide will boil off and create a gas that exerts a pressure on the remaining nitrous oxide liquid. This means that unlike our fuel (ethanol), which requires a nitrogen tank to pressurize, nitrous oxide can pressurize itself and takes out the need for any K-bottle. However, since nitrous is a rather dangerous material, we have decided to first perform this preliminary nitrous oxide test where we replace the nitrous oxide with water and add in a nitrogen tank for pressurization.
In this test, we ran water pressurized with nitrogen gas through our Ethanol tower in order to verify our system and get readings on pressure and temperature. This cold flow test was our first major checkpoint to our way to Callisto 1 and required a great effort from each subsystem.

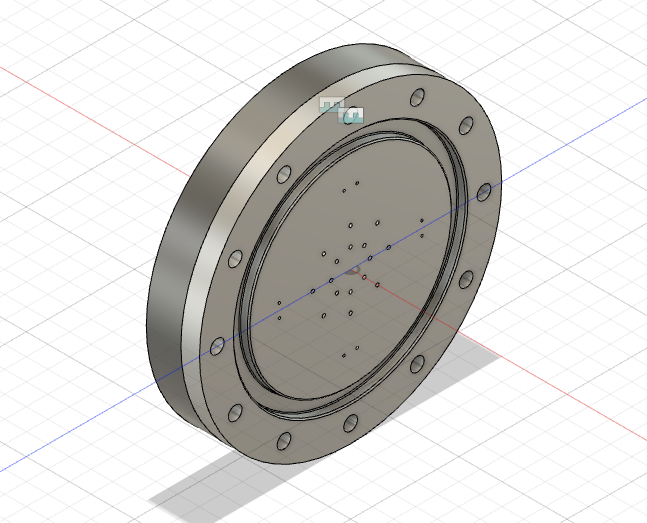

In this test, we will run ethanol pressurized with nitrogen gas through our ethanol tower and nitrous oxide through our nitrous tower and feed these into the injector and into the combustion chamber, where they will ignite and go through the nozzle to get a reading on the thrust. This test has particular emphasis on ignition, injector functionality, and hazard prevention since it models what our actual rocket's interior will consist of.
